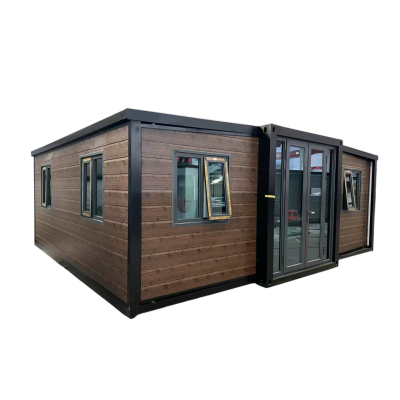

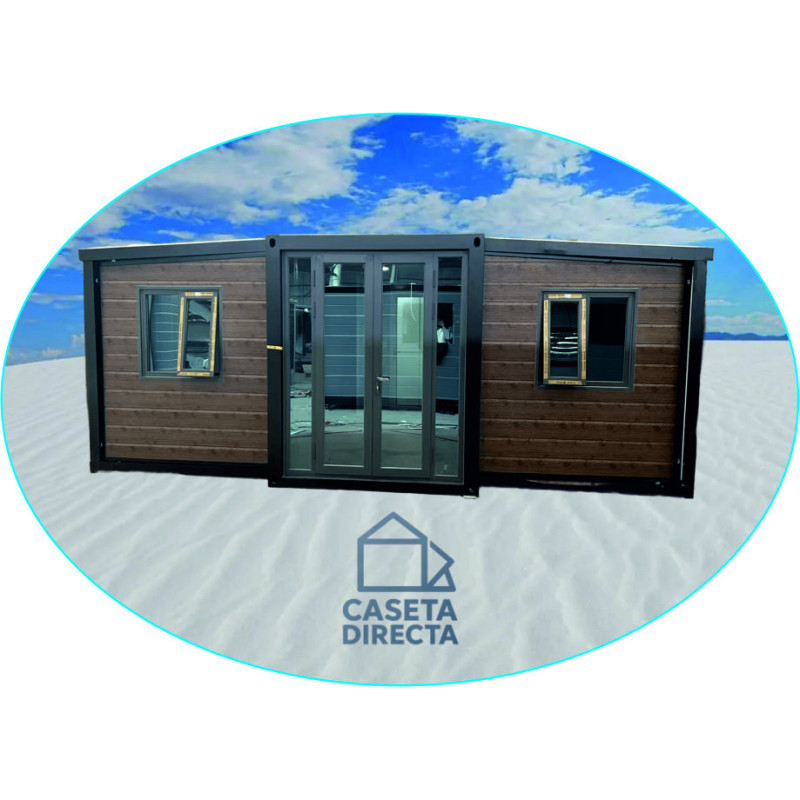

FoldBox 37 Foldable House Nogal · Premium Range

The FoldBox 37 / expandable foldable house of 37 m²

Includes 1 or 2 bedrooms, L-shaped kitchen, full bathroom and utility installations.

Delivered ready to use and unfolds in just a few hours, without construction work or special permits.

🎬 Installation and unfolding video:

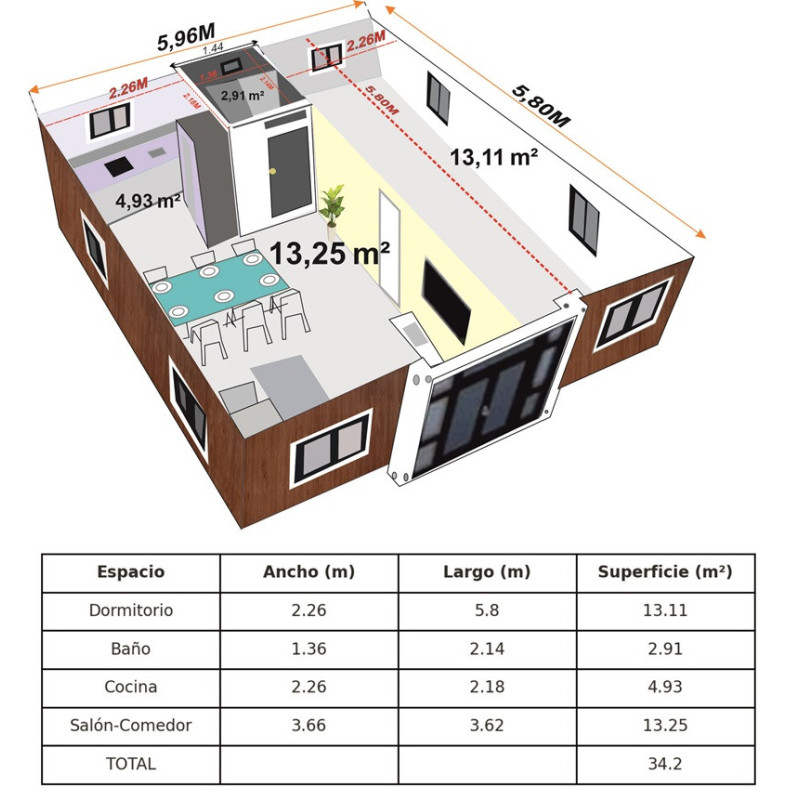

🌟 Layout

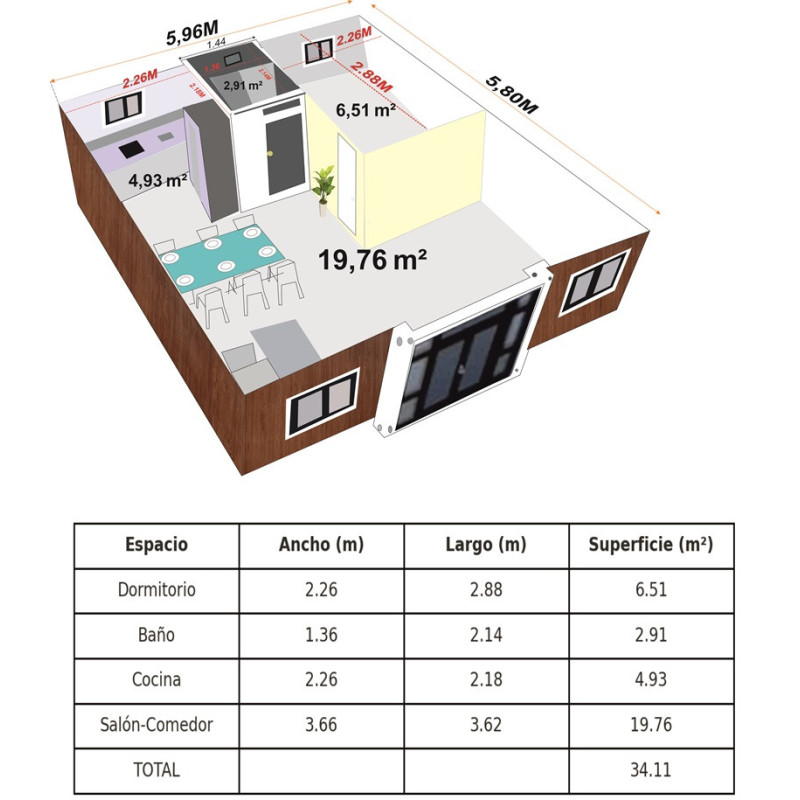

1 bedroom: 4 Aluminium windows with TBT (Win-004), living room, L-shaped kitchen and full bathroom.

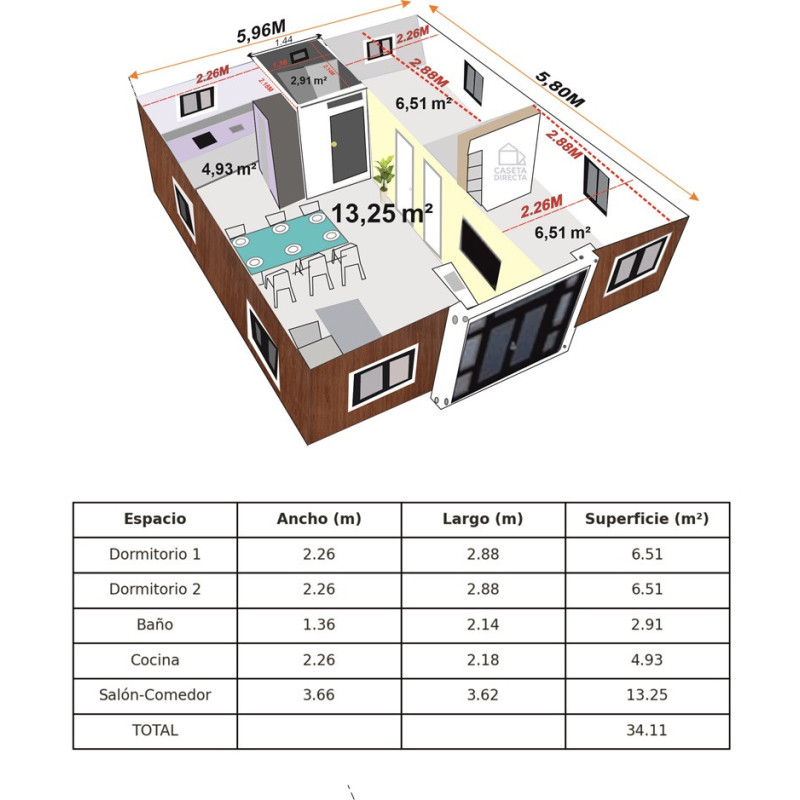

2 bedrooms: 8 Aluminium windows with TBT (Win-004), living room, L-shaped kitchen and full bathroom.

1 XL bedroom: 8 Aluminium windows with TBT (Win-004), living room, L-shaped kitchen and full bathroom.

🌟 Key upgrades in this unit:

🚪 Exterior door:

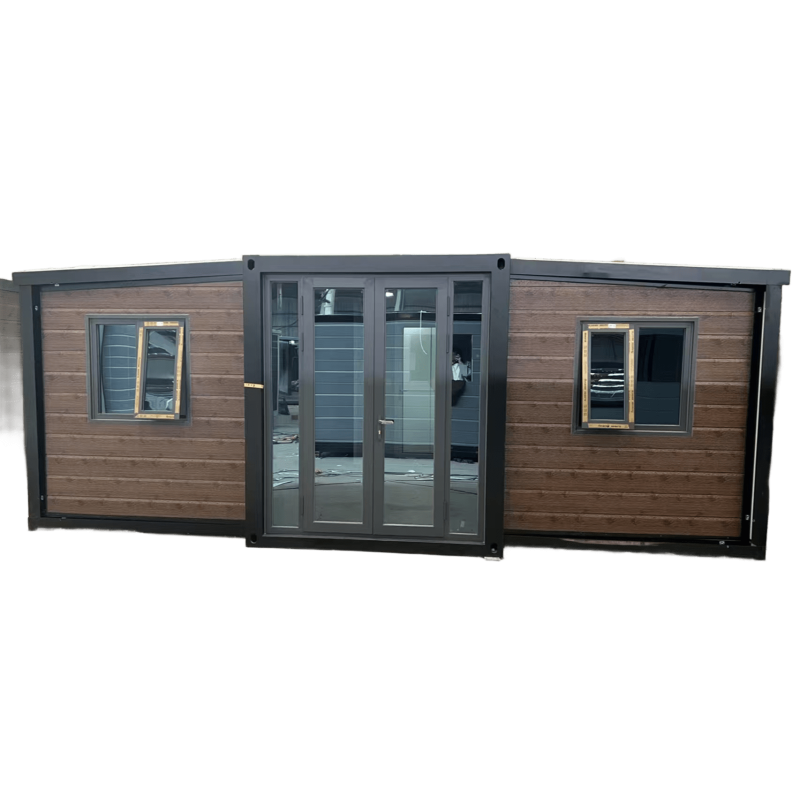

Includes a double Side By Side door (Door-004), available in white, black or grey. No upgrade option.

🪟 Windows Win-004: 🌟

Aluminium windows with double glazing and thermal break (TBT). Flush inward/outward opening and top-hung. Colours: white, black or grey.

1 bedroom: 4 windows / 2 bedrooms and 1 XL bedroom: 8 windows

⚙️ Basic equipment with upgrade option:

🍽 Kitchen KITC-04: L-shaped layout with marble countertop, double sink, mixer tap and spacious cabinets. (Upgradeable on request)

🛁 Bathroom BATH-01: semi-circular shower cabin, vanity with sink, WC and mirror with storage. UV coating in wet area. (Upgradeable on request)

🚪 Interior doors Door-001: white, with black handle and lock. (Optional in superior finishes)

🪵 Floor PVC-028:

Waterproof, durable and easy to maintain. (Upgrade option to SPC flooring available)

🎥 Interior and finishes:

*Example video of a completed 37 m² house.

⭐ Exclusive advantages of our 37 m² Foldable House

Every detail has been designed to stand out from other solutions on the market. Here is why our FoldBox is superior:

🔩 Structure without welding points

🔧 Manufactured in a single piece, without visible welds, improving its strength, durability and structural finish.
💬 Most foldable houses include multiple weld points that weaken the structure over time.

🧱 Optimized interior height: 2.20 m

📏 Enjoy a more comfortable living space thanks to a minimum height of 2.20 metres.
💬 Standard models on the market are often limited to just 2 m, creating a feeling of confinement.

🧊 Roof with EPS composite panel

🧩 Aesthetic and functional panels with integrated thermal insulation.
💡 Also allows clean installation of recessed lighting.
💬 Other houses use visible metal sheets, requiring lighting reinstallation after assembly.

💡 Built-in LED lighting

🌟 Factory-installed directly into the ceiling.
💬 Avoids external, unattractive installations. Result: a more elegant home from day one.

🍽️ Fully equipped superior kitchen

🏅 Tall cabinets, authentic marble countertop and modern design.
💬 Other houses feature shorter units with less resistant artificial marble.

🎨 High-precision exterior finishes

🛠️ Claddings and assemblies carried out by qualified personnel, taking care of every detail.
💬 We guarantee a premium exterior look, exceeding the typical industrial finish of the sector.

🏗️ Additional structural reinforcement

📐 Internal structure with multiple welded square tubes for maximum stability.
💬 Although slightly heavier, it provides robustness not found in other similar houses.

🛠️ Technical Specifications of the FoldBox 37

Main structure (metal frame)

• Main floor beam:
  Square steel 80 × 100 mm, corrosion treated.
• Secondary floor beam:
  Profile 50 × 70 mm, designed to ensure load resistance.
• Roof beam:
  C-type beam 30 × 80 × 20 × 2.0 mm, providing rigidity and durability.
• Main columns:
  Rectangular tube 100 × 100 mm, highly resistant.
• Secondary pillars and reinforcements:
  Tubes 50 × 50 mm and 40 × 40 mm, ensuring overall stability.
• Lateral frame:
  Special concave tube 1.2 mm thick.
• Surface treatment:
  Powder coating by electrostatic spraying, thickness ≥80 μm. Provides corrosion resistance and durable finish.
• Floor live load: Up to 2.0 kN/m²
• Roof live load: Up to 0.9 kN/m²

🧱 Insulation type: EPS (Expanded Polystyrene)

• Wall panels:
  EPS sandwich panel with pre-painted steel.
  ➤ Total thickness: 75 mm
  ➤ Steel thickness: 0.326 mm
• Roof panels:
  EPS composite panel 50 mm with 0.326 mm steel.
  ➤ Lightweight and efficient insulation.
• Internal insulation layer:
  EPS 50 mm thick
  ➤ Density: 10 kg/m³
  ➤ Flame retardant treatment
• Airtight sealing:
  Excellent insulation in doors and windows thanks to specific profiles and joints.

❄️ Thermal insulation

• Thermal conductivity: λ = 0.048 W/m·K, excellent insulation against external temperatures.
• Wind resistance: Withstands pressures up to 0.60 kN/m²

🔇 Acoustic insulation

• Soundproofing: Noise reduction of ≥30 dB, limits external noise in urban or rural areas.
• Fire resistance: Classification Level A, maximum fire protection.

🪵 Floor layers

• Base structural board:
  Glass magnesium board 15 mm.
  ➤ Fire, moisture and load resistant.
• Top covering:
  Vinyl PVC flooring 2.0 mm.
  ➤ Decorative, non-slip and easy to clean.

⚡ Complete and safe electrical installation

• Wiring system:
  ✅ Concealed and ducted wiring, CE compliant.
  ✅ Independent lines for lighting, kitchen, air conditioning and hot water.
• Electrical panel:
  Includes differential switch and 4 circuit breakers, pre-installed.
• Lighting points:
  💡 Built-in LED lighting in ceilings.
  💡 15 W LED ceiling lamp in main rooms.
  🚿 12 W LED lamp for bathroom.
• Power sockets:
  🔌 Schuko type outlets, CE compatible, strategically distributed throughout the house.

✔️ Ideal for:

Permanent residence · Country house · Tourist accommodation · Modular office

The FoldBox 37 ensures thermal and acoustic insulation, fire and moisture resistance, and ultra-fast assembly. Direct factory quality.
