25 m² Foldable House – Double Wing 700 Pearl Grey

€7,999.00

VAT excluded

25 m² open-plan foldable cabin, with reinforced structure, thermal insulation and side “wing” unfolding system. Fully customizable. Ready to use in under one hour.

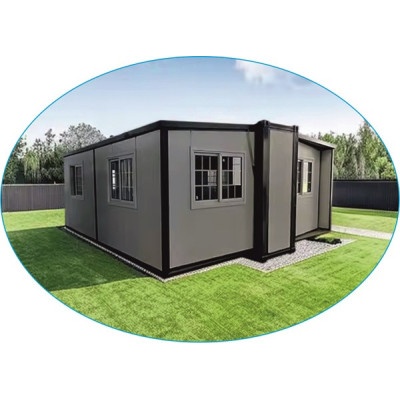

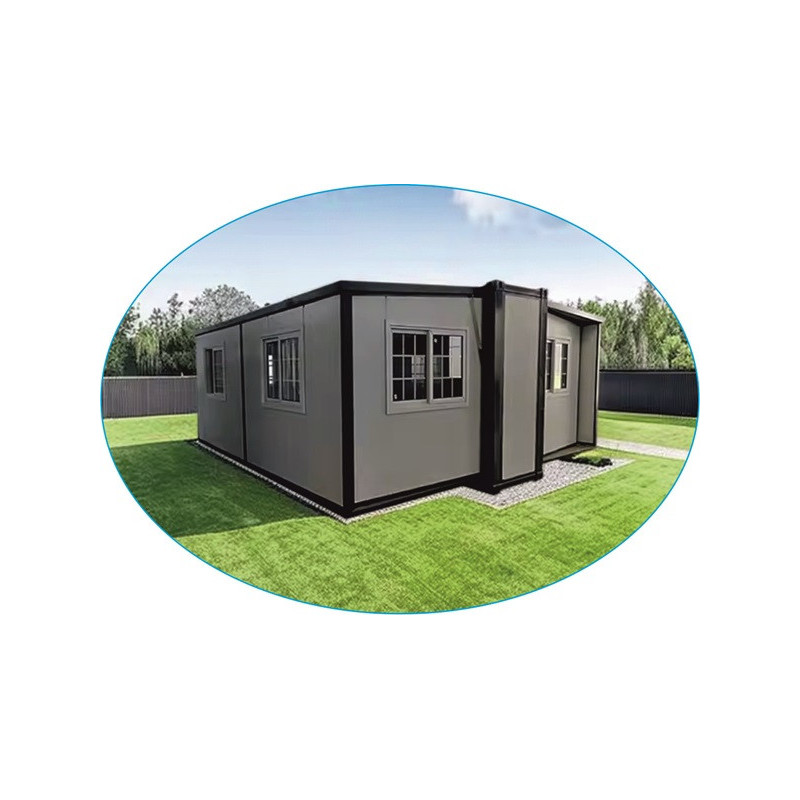

The FoldBox 25 / Double Wing 700 is a 25 m² expandable foldable cabin with a fully open-plan design, reinforced structure and side “wing” opening system. Ideal as a versatile open space for events, agricultural, livestock, promotional or logistics use.

Its innovative unfolding system allows the unit to be set up in less than one hour, with no construction or foundation required. Delivered ready to use and customizable with additional equipment on request.

Thanks to its galvanized steel structure and thermal insulation in walls and roof, it provides durability, resistance and comfort in multiple environments.

🎬 Installation and unfolding video:

🌟 Layout

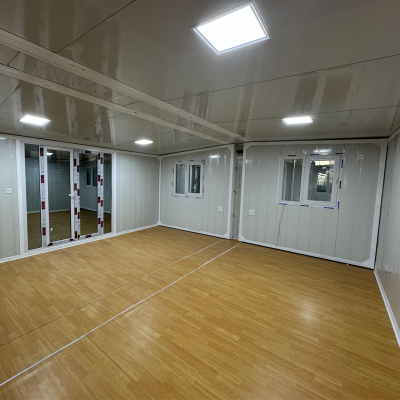

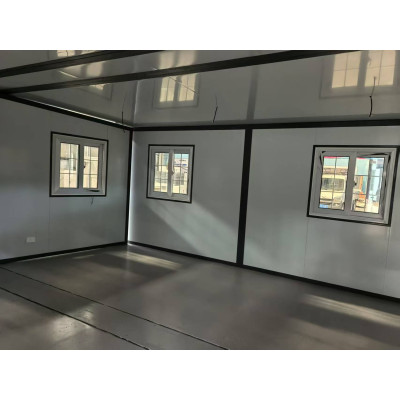

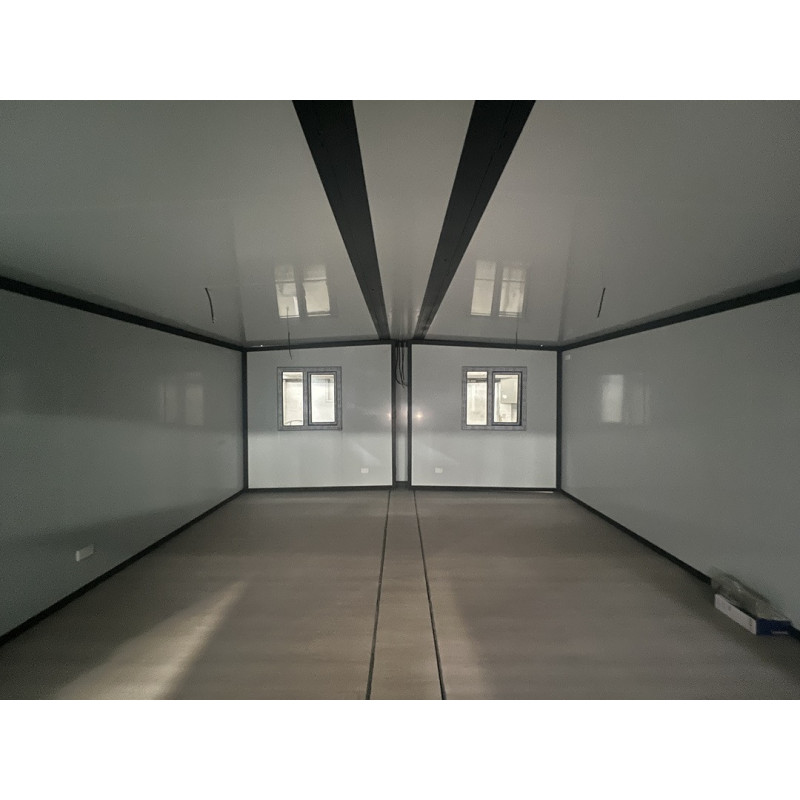

Open-plan unit with no interior partitions.

🌟 Key upgrades in this unit:

Thermal insulation in walls and roof: 75 mm sandwich panels for walls and 50 mm for roof, with EPS 12 kg/m³ insulation (optional rock wool or polyurethane).

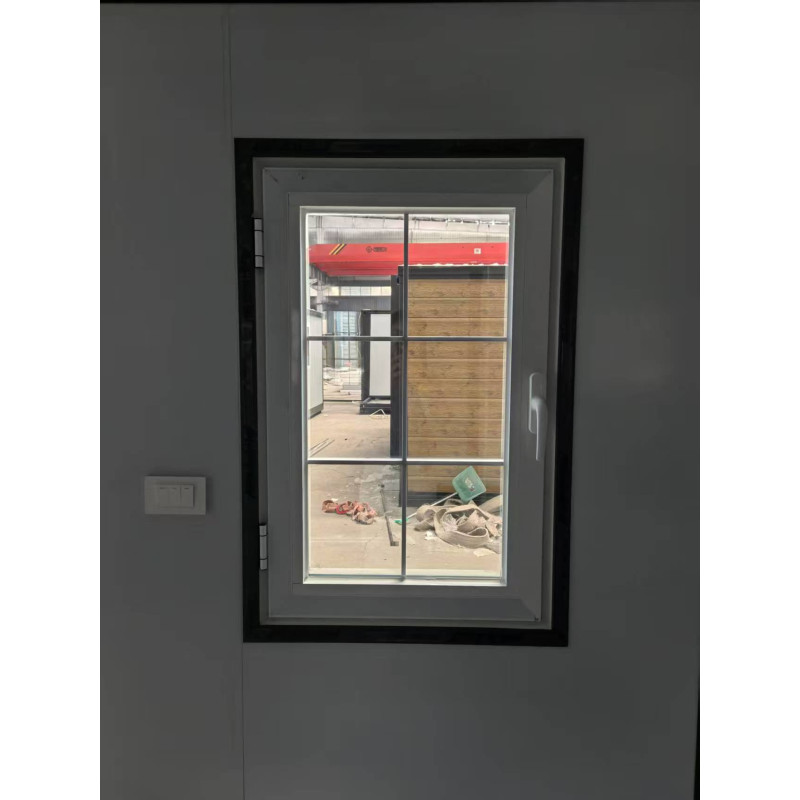

PVC sliding windows: double glazing, with option to upgrade to aluminium or premium aluminium cladding.
Anti-burglary steel exterior door: robust and secure (upgrades available on request).

🔧 Basic equipment with upgrade options:

Flooring: central 18 mm cement board and 18 mm bamboo boards on sides. PVC or SPC finish available on request.
Basic electrical installation: includes wiring, 6 industrial LED lamps and international sockets. Complies with standards and can be customized per country.

✔️ Ideal for

Country house · Tourist accommodation · Modular office · Events · Exhibition space · Logistics

🛠️ Technical specifications

Usable area: 25 m²
Unfolded size: 5.90 × 4.80 × 2.48 m
Usable interior size: 5.46 × 4.64 × 2.24 m

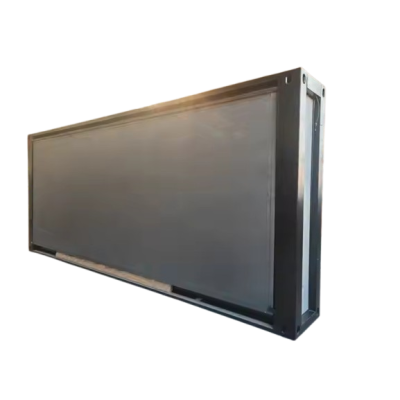

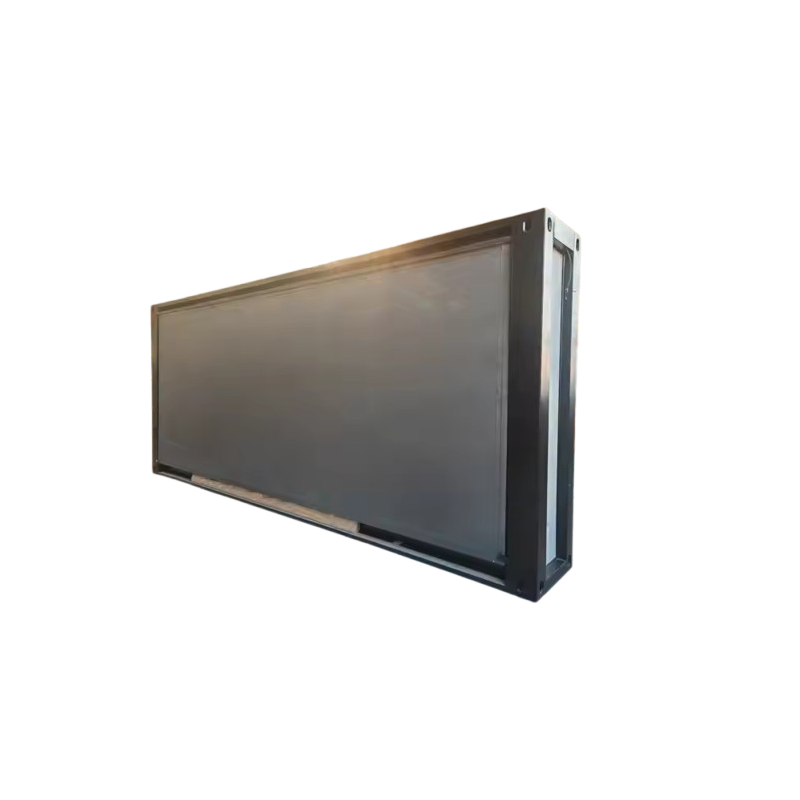

Folded size: 5.90 × 0.70 × 2.48 m
Weight: 1,900 kg
Structure: Galvanized steel Q235, no welding
Insulation: EPS 12 kg/m³ in walls and roof (optional rock wool or PU)
Lighting: 6 high-efficiency LED lamps
Electricity: wiring by sections (6², 4², 2.5², 1.5²), 63A breakers, 43A/32A/20A RCDs
Windows: PVC double glazing (upgradeable)
Door: Anti-burglary steel (upgradeable)
Seismic resistance: Level 8 · Wind: Level 10
Roof load: 80 kg/m² · Floor load: 200 kg/m²

Reference Folding House 25M

Data sheet

Medidas: Casa 25: Medidas desplegada: 5,90 × 4,80 × 2,48 m · Interior útil: 5,46 × 4,64 × 2,24 m · Medidas plegada: 5,90 × 0,70 × 2,48 m · Superficie útil: 25,3 m² · Altura interior: 2,24 m · Peso: 1.900 kg.
Aislante: Casa 25: Paredes con panel sándwich de 75 mm y techo de 50 mm, ambos con aislamiento EPS 12 kg/m³. Opcional lana de roca o poliuretano. Aislamiento térmico integrado, ligero y resistente.
Sistema Eléctrico: Casa 25: Cableado por sectores (6², 4², 2.5², 1.5²), 6 lámparas LED industriales, enchufes internacionales, magnetotérmico 63A y diferenciales 43A/32A/20A. Personalizable según normativa del país.
Cetificados y Permisos: Cumple normativa CE como mobil home sin anclaje fijo. Apta para vivienda, oficina o uso turístico. El cliente debe consultar con su ayuntamiento o comunidad la normativa según el uso y tipo de terreno donde se desee instalar.
